ENGINE
|
|
|

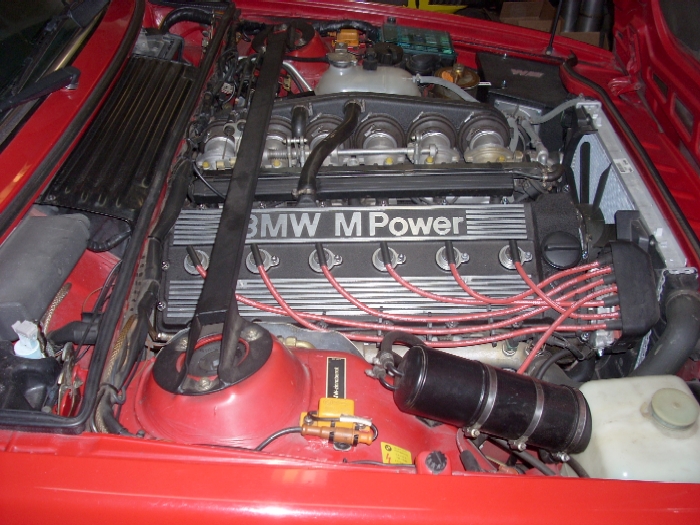

If anything defines the M6, it's this - the BMW Motorsports S38 engine. It's powerful, runs strong, sounds great, and
looks the part. Aside general maintanence, I've applied a number of upgrades and improvements to it.
 |
COOLING SYSTEM

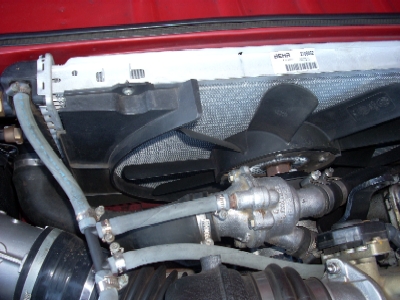

New parts include the radiator, water pump, radiator hoses, engine fan clutch and coolant reservoir
BMW recommended non-phosphorus anti-freeze is used.
A new heater valve was also installed.
|
|
 |
BOTTOM END
A new oil pump was installed.
Synthetic oil is used.
The right motor mount was replaced.
|
 |
TOP END
The valves were adjusted.
A new upper chain tensioner rail was installed.
A Euro spec intake camshaft was installed.
The Motorsport exhaust cam sprocket was installed to improve the mid-range.

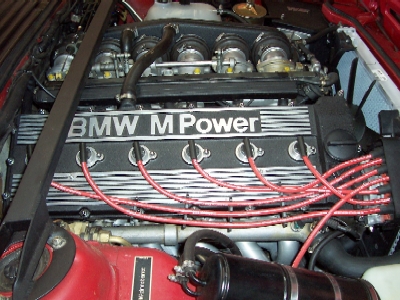

Magnacor spark plug wires and new spark plugs were installed.

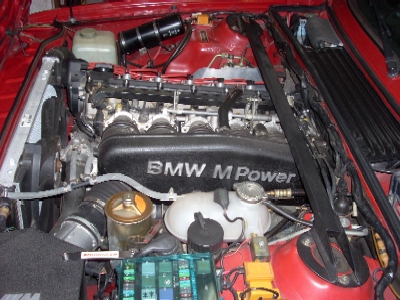

The valve cover an air plenum was refinshed with black wrinkle paint.
|
 |
EXHAUST

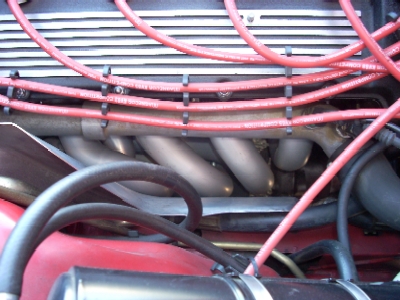

The Euro spec M6 header was installed.
The output flanges on the header were modified to fit the stock USA center section.
|
 |

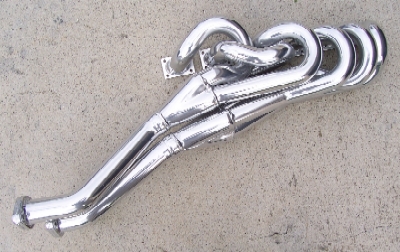

The header is a work of art - especially after fresh ceramic coating. The primary pipes are bent from individual
tube sections without multiple weld joints - very impressive work.
|
 |
FUEL INJECTION SYSTEM
The original restrictive airlow meter was replaced with a custom designed MAF system.
See details here. This improved throttle response
and power.
A new fuel filter was installed.
New O-rings were installed on the intake plenum.
|
 |

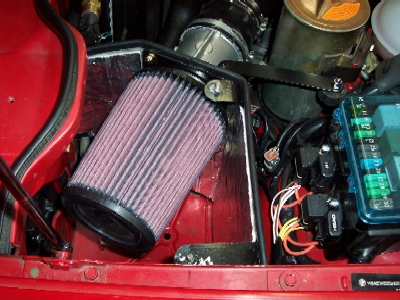

A custom fresh air intake was made and a K&N filter installed.
|
