E30 M3/325 REAR BODY BRACE

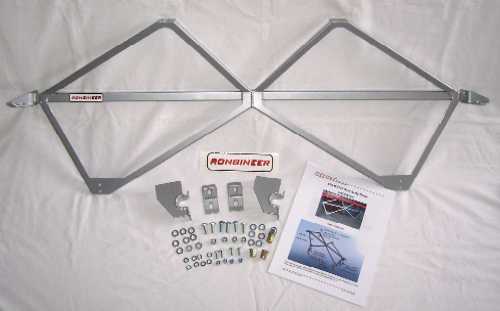

Rongineer M3 Rear Body Brace Kit
The RONGINEER M3 Rear Body Brace provides an effective and efficient way to increase the torsional stiffness of the rear body. The multiple attachment points and the truss design of the brace provide a higher level of support and stiffness to the rear body compared with a simple strut brace spanning the shock towers. In essence the brace forms a second bulkhead behind the rear compartment bulkhead. The truss design of the brace provides stiffness in the support plane at a minimum of weight ?the brace only weighs 4 pounds! The floor attachment points of the brace provide additional support to the anti-roll bar support brackets mounted underneath the floor. These brackets support the original anti-roll bar brackets that are known to be failure prone when stiffer anti-roll bars are installed. Vehicles with suspensions tuned for track, auto-x or street will benefit.

The M3 Rear Body Brace fits E30 325i models when the ballast pad on the floor is trimmed or removed.

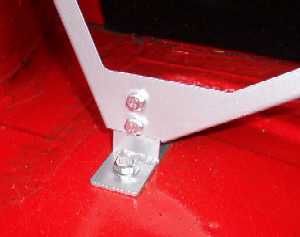

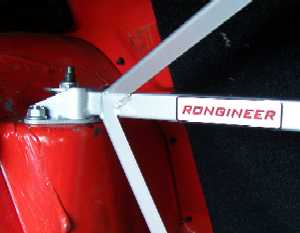

Rongineer M3 Rear Body Brace welds Rongineer M3 Rear Body Brace Lower Bracket

  • The brace and support brackets are fabricated from steel and TIG welded for strength.
  • Support brackets for the anti-roll bar are included in the kit.
  • All parts are powder coated for appearance and durability.

    • Rongineer M3 Rear Body Brace

  • The illustrated installation instructions provided with the kit show how the carpet and inner trim panels can be modified to fit with the brace in place.
  • The kit includes all hardware.
  • Introduced at $395 plus shipping.
  • Contact rjones@rongineer.com for shipping and ordering information.

    • Contact Ron Jones at rjones@rongineer.com
