With the success of the Lido Limo/Shuttle NEV car with the wheelchair lift, Western Golf Car noticed an opportunity for developing a special wheelchair shuttle vehicle for use in airport terminals. The packaging
requirements of this vehicle to fit the wheelchair lift and platform, a driver, two passengers and luggage was a big challenge and necessitated a vehicle with a footprint unlike any vehicle in production at that time.
For these reasons it was necessary for me to design the vehicle frame from scratch. It was constructed of welded steel tubing and was more simple to build and stiffer than the purchased frames that Western typically used
and extensively modified for larger footprint models. The track width necessitated by the lift mechanism was larger than any vehicle yet built and required extensive modifications to the front suspension and rear
axles. Although the vehicle had only a small compliment of running and warning lights, I had to design completely new main (12v) and motor controller wire harnesses.
The wheelchair lift mechanism was designed and built by the Western distributor in New Zealand. After consulting with a representative from American Airlines we were astonished by how heavy a weight the lift
mechanism needed to handle for some passengers, and I had to coordinate a re-design of the lift mechanism to increase the capacity. After this was carried out by the manufacturer I verified the capacity by
testing it with the platform filled with batteries to get the target weight.
Although the lift mechanism was out-sourced, I had to design the platform and ramp mechanism. I had to increase the width of it too (another surprise) after meeting with the man from American Airlines, but
fortunately it was still on the "drawing board" when this occurred. The platform was designed in aluminum to save weight.
The lead photo shows the running chassis ready to send to the design studio for designing the body. An "industrial look" was envisioned. This program lead the way to Western designing and building proprietary
chassis in-house.
Women's Pittsburgh Steelers Black Wild Card Mesh V-Neck T-Shirt,Green Bay Packers Stripe 12" x 12" Oval Full Color Magnet.Women's Kansas City Chiefs Junk Food White Sideline V-Neck T-Shirt,Men's Kansas City Chiefs Concepts Sport Red Fusion Printed Pant,Majestic Rob Gronkowski New England Patriots Women's Navy Plus Size Fair Catch Name & Number T-Shirt
Houston Texans Womens Jersey.Women's Chicago Bears Majestic Charcoal On The Fifty Meant To Win T-Shirt,Mens San Diego Chargers Navy Blue Touchback Half Zip Pullover Jacket
Nike Houston Texans Mens Jerseys.Indianapolis Colts Toddler Girls Cheer Jumper Set - Royal Blue/White,New Era New York Giants St. Patrick's Day Women's Chic Cadet Adjustable Hat - White.Seattle Seahawks Multi-Pack Temporary Tattoos,Toddler Pittsburgh Steelers Gold/Black Off-Field T-Shirt and Pant Set,Mens Detroit Lions Antigua Black Exceed Polo.Men's Houston Texans Brown Billfold,Men's Philadelphia Eagles Pro Line Heathered Gray Heritage II Big & Tall T-Shirt.Men's Green Bay Packers Black Leather Watch & Wallet Set,Carolina Panthers Crackle Family Cheer Framed Art
Cheap Houston Texans Jersey.Youth Los Angeles Rams New Era Camo Salute To Service On Field 39THIRTY Flex Hat,Men's San Francisco 49ers Pro Line Gray Plymouth T-Shirt,Women's New England Patriots Majestic White/Navy Draft Me Fashion T-Shirt
Houston Texans Jersey For Sale
 |

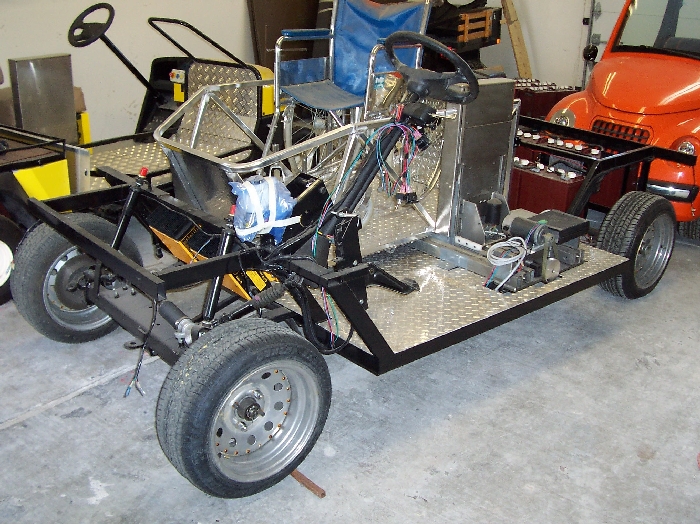

This is the car under construction.
Since a standard (non-automotive) steering column was used, I had to design a new mounting for the brake pedal and master cylinder.
Some of the work to widen the front axle can be seen.
The prototype wiring harness is being fit checked on the chassis
A part of the wheelchair lift mechanism can be seen sitting on the floor in front of the car.
|
